Serve to contain pressure on one side of a piston to prevent fluid from flowing across the cylinder head
Pneumatic piston seals
Operate in dynamic applications where seals and valves are actuated by air
Easy to assemble
Piston seals are often easy to install, even in closed housing
Best used with guiding elements
It is recommended for U-ring seals to be used with appropriate guide rings
Types of Piston Seals

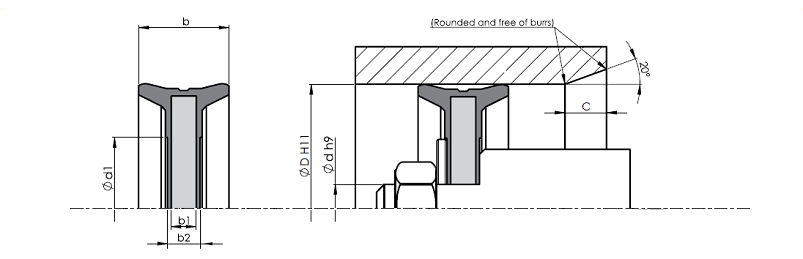

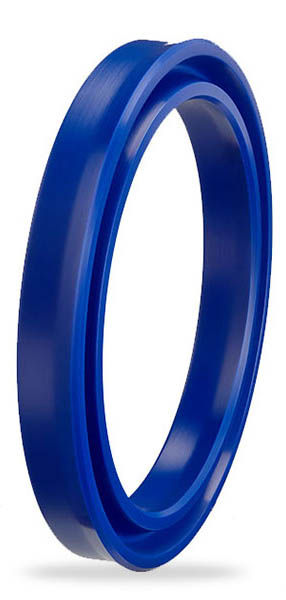

A101 U-Ring Piston-Rod Seal PU / NBR / FKM
ALP A101 U-Ring is designed with symmetrical lips to be used for any standard cylinders for rod and piston applications.
A101 single acting seal manufactured with 90 shore special ALP NBR compound or 92 shore special ALP PU compound as standard.
A101 Piston and Rod Seals could be manufactured in FKM (VITON) for extreme temperature conditions on your demand. Please contact our sales team for pricing and lead time sales@pstseals.com
A101 piston and rod seals offers easy assembly even into closed housings, very economic sealing solution, and superior dynamic and static sealing effect to the system, simple housing design.
Wide range of dimensions available on demand.
A101 single acting U-seal to be used safely for construction machinery, moving platforms, forklifts, agricultural machinery, and any standard cylinders.
A101 U-ring seal is recommended to be used with min one ALP guidening element combination such as A251, A254, A255, A256, depending on the working conditions.
A107 piston and rod seal manufactured with high specification ALP 80 shore NBR compound and NBR impregnated cotton to help extrusions
A107 offers suitability to work even under low pressures and poor surfaces, very economic sealing solution, easy installation and simple low height groove design.
A107 piston seal is recommend to be used with min one ALP guidening element combination such as A251, A254, A255, A256, depending on the working conditions.
A107 single acting seals to be used for low to medium duty hydraulic cylinders, commonly used for mobile hydraulics and presses.

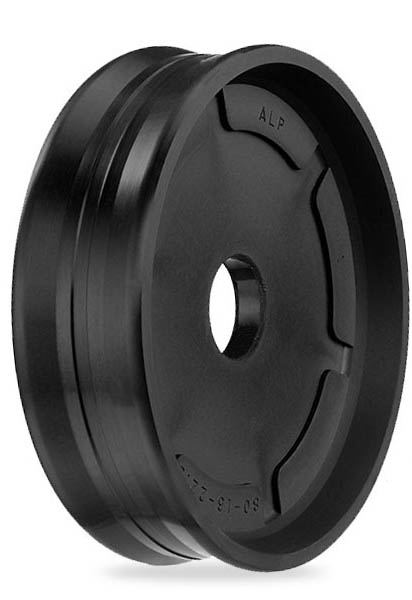

ALP A801 complete pneumatic piston is designed to be used especially for short stroke pneumatic iron and aluminium cylinders as a complete piston.
A801 double acting complete piston is manufactured with high specification special 80 shore ALP NBR compound, double cup seal, and 80 shore NBR vulcanised metal disc support as standard and could be manufactured with ALP FKM compound for extreme working conditions on your demand. Please contact our sales team for pricing and lead time, sales@pstseals.com.
ALP A801 complete piston offers a versatile design that accommodates nearly all cylinder types, excellent sealing and guidening performance at the same time, very good wear resistance, easy installation to piston rod without using other sealing elements, ideal corrosion protection because of elastomer covering, immediate full pressure response because of special design and is suitable for oiled or oil-free working conditions (note that the seal should be lubricated on assembly).
A801 double acting piston seal is to be used safely for pneumatic cylinders with or without cushioning.
